Pasteurizer Multi-Purpose Flash Sterilizer
Qhov ntau- lub hom phiaj flash sterilizer & pasteurizer tshwj xeeb yog tsim los rau cov kua txiv hmab txiv ntoo, dej haus, khoom noj siv mis thiab lwm yam khoom khov. Txais siv cov pasteurization thiab flash sterilization technology, nws ua tiav kom tsis muaj menyuam hauv lub sijhawm luv luv thaum khaws cov khoom qub, xim thiab khoom noj khoom haus. Lub tshuab ua haujlwm ruaj khov thiab tsis yooj yim rau txhaws, ua rau nws zoo tagnrho rau cov kua dej siab -viscosity, pulpy lossis particle- muaj cov ntaub ntawv. Nws ua tau zoo txuas ntxiv cov khoom txee lub neej thiab yog siv dav hauv cov khoom noj khoom haus rau cov dej haus, khoom noj siv mis, condiments thiab lwm yam lag luam.
- Khoom Taw qhia
Yuav Ua Li Cas Peb Multi-Lub Hom Phiaj Flash Pasteurizer Ua Haujlwm
-Core Cua sov System
Lub hauv paus ntawm cov khoom siv yog cov cua sov seem, uas muaj ntau qhov txuas txuas cov cua sov ntu thiab cov kav dej ncaj nraim. Cov dej kub circulates nyob rau hauv lub tsho sab nrauv, thaum cov khoom ntws los ntawm cov hlab puab. Cov khoom thiab cov dej kub txav mus rau qhov sib txawv ntawm cov lus qhia, ua kom cov khoom muaj cua sov sib npaug thiab sai sai rau qhov ntsuas kub kom tsis muaj menyuam. Thaum cov khoom mus txog qhov yuav tsum tau ua qhov kub thiab txias, nws ncaj qha nkag mus rau hauv cov yeeb nkab ncaj tuav seem ntawm sab nraub qaum, tuav qhov kub thiab txias rau lub sij hawm teem kom tiav kom tsis muaj menyuam. Qhov no ua kom muaj kev ua kom tsis muaj menyuam ua tiav yam tsis muaj kev puas tsuaj rau cov khoom saj thiab khoom noj khoom haus vim muaj cua sov ntev.
Tiag -Line Integration

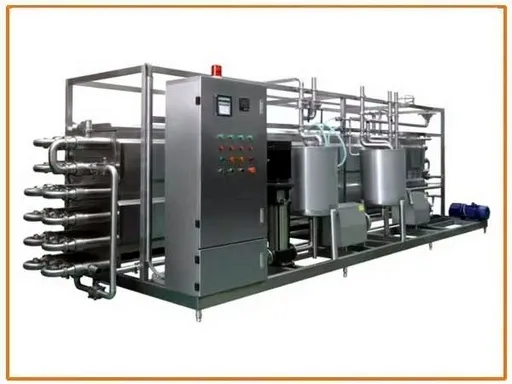

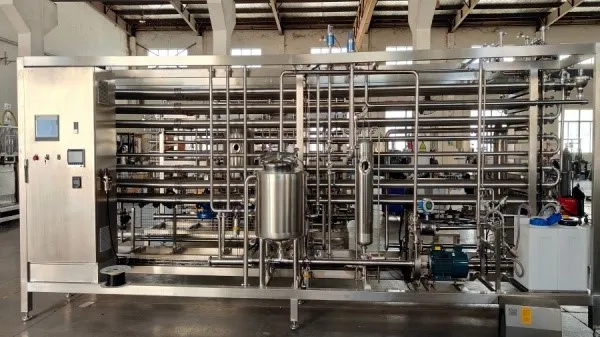

Qhov no yog ib daim duab tiag tiag ntawm peb cov tubular UHT sterilizer tiav lawm.Cov chav tsev tag nrho muaj plaub qhov tseem ceeb:
Hluav taws xob tswj vaj huam sib luagNyob rau sab laug, nws ua haujlwm rau tag nrho cov kab ke, teeb tsa kom tsis muaj menyuam, thiab saib xyuas kev ua haujlwm kom ntseeg tau cov txheej txheem ruaj khov.
Tubular Thaum tshav kub kub Exchanger & Sterilization SectionLub hauv paus cheeb tsam uas muaj ntau yam stainless hlau raj yog cov tub ntxhais sterilization cheeb tsam. Cov khoom ntws hauv cov hlab ntsha thaum cov dej kub / dej txias ncig hauv lub tsho kom muaj cua sov thiab txias.
Pab TankLub tank stainless hlau nyob rau hauv pem hauv ntej stabilize cov khoom ntws, tsis siab, thiab kuj txhawb CIP tu kom yooj yim txij nkawm.
Pumps & InstrumentationXws li cov twj huv huv, ntsuas kub / siab, thiab li qub. Lawv tsav cov khoom lag luam thiab saib xyuas cov ntsiab lus tseem ceeb kom ntseeg tau tias kev ua haujlwm raug thiab nyab xeeb.
Core Advantage
1.Nqi & Efficiency Boost
Tag nrho -hauv-ib qho kev tsim qauv, tsis muaj boilers / tank ntxiv. Ib - sij hawm yuav khoom, txiav kev nqis peev ua ntej & nqi ua haujlwm txhua xyoo ntau dua 30%
2.Kev khiav hauj lwm yooj yim & txij nkawm
Nqe lus piav qhia: PLC tswj tsis siv neeg puv, ib qho - qhov tseem ceeb pib, tsis muaj cov neeg ua haujlwm siab xav tau. CIP online tu system, 80% kev tu kom zoo dua qub, txo qis qis qis.
3.Product Quality Upgrade
Piv nrog rau kev ua kom tsis muaj menyuam, cov khoom lag luam muaj qhov ruaj khov thiab saj zoo dua qub, pab tsim kom muaj cov duab siab - kawg thiab txhim kho tus nqi ntxiv thiab tau txais txiaj ntsig.
4.Global Compliance Guarantee
Tag nrho 304/316L sanitary stainless hlau, ntsib FDA, CE thiab lwm cov qauv kev nyab xeeb khoom noj thoob ntiaj teb. Yooj yim kom dhau kev soj ntsuam thoob ntiaj teb, txhawb nqa kev xa tawm thoob ntiaj teb.
Technical Parameter
| Yam khoom | Specification |
|---|---|
| Muaj Peev Xwm Ntau Lawm | 1 t/h |
| Sterilization txheej txheem |
6℃- 60℃Homogenization - 80℃30s - 8 degree |
| Inlet Khoom Kub | 6 degree |
| Cov khoom siv Sterilization kub | 85 degree |
| Lub sij hawm ua kom tsis muaj menyuam | 30s |
| Qhov hluav taws xob kub | 8 degree |
| Sterilizer System Ua Haujlwm Siab | Ntau dua lossis sib npaug li 0.4 MPa |
| Hwj chim | 3.5 kW tsi |
| Chav Siab | Ntau dua lossis sib npaug li 5 bar |
| Chav noj | 40 kg / h |
| Txias Dej Flow Rate | Ntau tshaj lossis sib npaug li 12 m³ / h |
Cov neeg siv khoom txhawj xeeb tshaj plaws
1. Q: Dab tsi ntawm cov khoom no yog cov tubular pasteurizer haum rau?
A: Lub tshuab no ua haujlwm zoo tsis yog tsuas yog rau nyias, pub dawb- cov dej ntws zoo li npias, tab sis kuj yog rau cov ntaub ntawv tuab xws li yogurt, mis nyuj, dej qab zib, kua txiv hmab txiv ntoo thiab kua mis nyeem qaub. Piv nrog cov phaj- hom sterilizers, nws cov tubular tsim muaj tsawg dua yuav raug thaiv, yog li nws yog qhov tshwj xeeb tshaj yog haum rau cov khoom uas muaj cov khoom me me.
2. Q: Puas tuaj yeem ua kom tsis muaj qhov kub thiab lub sijhawm hloov kho rau cov khoom sib txawv?
A: Yog. Cov cuab yeej tau nruab nrog lub siab tsis siv neeg PLC tswj qhov system, tso cai hloov kho kom tsis muaj menyuam (los ntawm 75℃txog 135 degree) thiab tuav lub sijhawm (los ntawm 4s txog 300s) kom tau raws li cov txheej txheem ntawm cov khoom sib txawv.
3. Q: Lub peev xwm ntau lawm ntawm no pasteurizer yog dab tsi?
A: Tus qauv qauv muaj peev xwm ntau lawm ntawm 1t / h, thiab peb tuaj yeem kho cov qauv nrog lub peev xwm siab dua (3t / h, 5t / h, 10t / h, thiab lwm yam) raws li koj qhov kev xav tau tiag tiag.
4. Q: Dab tsi yog qhov ntsuas kub ntawm cov khoom siv? Nws puas yuav cuam tshuam cov khoom zoo?
A: Kev tswj qhov kub thiab txias tau ncav cuag ± 0.5 degree, ua kom ruaj khov thiab ua kom tsis muaj menyuam muaj txiaj ntsig rau txhua pawg ntawm cov khoom, zam kev hloov pauv zoo los ntawm qhov sib txawv ntawm qhov kub thiab txias, thiab txuag qhov tsw thiab khoom noj khoom haus ntawm cov khoom.
5. Q: Yuav ua li cas ntxuav cov cuab yeej tom qab tsim khoom? Nws puas yooj yim rau kev khiav lag luam?
A: Cov cuab yeej siv tau yooj yim heev los ntxuav. Nws los nrog kev huv huv sai - haum kev sib txuas thiab cov kav dej txuas nrog tag nrho. Koj tuaj yeem ntxuav nws manually los ntawm kev yaug dej, lossis xaiv CIP tsis siv neeg tu qhov system. Tsis muaj qhov yuav tsum tau disassembled thaum lub sij hawm tag nrho cov txheej txheem.
6. Q: Dab tsi yog qhov yuav tsum tau ua dej txias rau cov khoom siv?
A: Rau cov qauv 1t / h, qhov yuav tsum tau ua kom txias dej ntws yog ntau dua lossis sib npaug li 12m³ / h, uas tuaj yeem ua kom cov khoom tsis muaj menyuam kom txias rau lub qhov hluav taws xob kub ntawm 8 degree, ua tau raws li qhov yuav tsum tau ua tom qab sau thiab cia.
7. Q: Cov cuab yeej no puas tuaj yeem muab tso rau hauv kuv cov kab ntau lawm?
A: Yog. Lub tshuab no los nrog cov qauv nkag thiab qhov hluav taws xob sib txuas, yog li nws tuaj yeem txuas ncaj qha rau koj cov homogenizer uas twb muaj lawm, filling tshuab thiab lwm yam khoom siv. Tsis xav tau kev hloov pauv loj rau koj cov kab ntau lawm.
Kev xa khoom & Kev xa khoom nyab xeeb
- Txhua tus tubular pasteurizer tau ua tiav qhov kev debugging, kev ntsuas siab, thiab kev ntsuas dej ua ntej xa khoom kom ntseeg tau tias kev pib ua haujlwm zoo thiab ruaj khov.
- Rau kev ntim khoom, chav tsev tau ntim tag nrho nrog cov yeeb yaj kiab yas shockproof, tom qab ntawd muab tso rau hauv ib qho kev xa tawm -cov ntaub ntawv ntoo uas muaj kev ruaj khov sab hauv los tiv thaiv kev sib tsoo, hloov, lossis ya raws kev puas tsuaj thaum lub sij hawm ntev - kev thauj mus los.
- Thaum packed, cov khoom yog loaded rau hauv lub thawv rau kev xa khoom. Logistics cov ntsiab lus yuav muab qhia tam sim ntawd kom koj tuaj yeem npaj tuaj tos, teeb tsa, thiab tsim khoom ua ntej.
